Chain Link Fencing Mesh Hero

Chain Link Fencing Mesh

Professional Grade Fencing Solutions

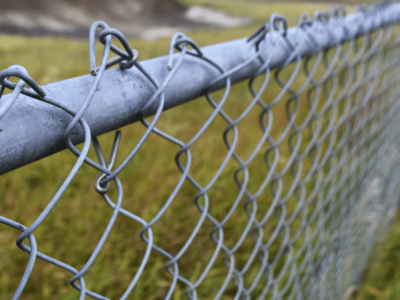

Chain Link Fencing Mesh Detail

Product Overview

JL Chain Link Fencing Mesh in Visakhapatnam is your trusted source for high-quality Fencing Solutions that combine strength, durability, and affordability. Our Chain Link Fencing Mesh is ideal for residential, industrial, and commercial needs—whether for securing boundaries, creating enclosures, or enhancing safety. With years of expertise and a commitment to quality, we deliver customized solutions that fit your exact requirements, ensuring reliable protection and long-lasting value.

Key Features

Superior Protection

Exceptional corrosion resistance with galvanized or PVC coating

Multiple Sizes

Available in various mesh sizes from 2" to 4"

Wire Options

Various wire thickness options (6G to 12G)

Quality Assured

Commercial grade with different GSM options

Flexible Sizing

Available in 50 ft and 100 ft roll sizes

Installation Options

Multiple end-type options for installation flexibility

Technical Specifications

Wire Type Gap Size Wire Thickness Quality Weight/Sq.Ft (kg) Roll Size Chain Link End
GI/PVC 2" x 2" 8G Commercial
40-50GSM
90-100GSM
240-275GSM		 ~0.406 50 Ft / 100 Ft One Side Twisted / Both Side Twisted / No Twist
10G ~0.229 One Side Twisted / Both Side Twisted / No Twist
12G ~0.159 No Twist
10G(2+1mm) Varies No Twist
8G(3+1mm)
6G(3+2mm)
6G(4+1mm)
GI/PVC 2.5" x 2.5" 8G Commercial
40-50GSM
90-100GSM
240-275GSM		 ~0.325 50 Ft / 100 Ft One Side Twisted / Both Side Twisted / No Twist
10G ~0.183 One Side Twisted / Both Side Twisted / No Twist
12G ~0.127 No Twist
10G(2+1mm) Varies No Twist
8G(3+1mm)
6G(3+2mm)
6G(4+1mm)
GI/PVC 3" x 3" 8G Commercial
40-50GSM
90-100GSM
240-275GSM		 ~0.271 50 Ft / 100 Ft One Side Twisted / Both Side Twisted / No Twist
10G ~0.152 One Side Twisted / Both Side Twisted / No Twist
12G ~0.106 No Twist
10G(2+1mm) Varies No Twist
8G(3+1mm)
6G(3+2mm)
6G(4+1mm)
GI/PVC 3.5" x 3.5" 8G Commercial
40-50GSM
90-100GSM
240-275GSM		 ~0.232 50 Ft / 100 Ft One Side Twisted / Both Side Twisted / No Twist
10G ~0.131 One Side Twisted / Both Side Twisted / No Twist
12G ~0.091 No Twist
10G(2+1mm) Varies No Twist
8G(3+1mm)
6G(3+2mm)
6G(4+1mm)
GI/PVC 4" x 4" 8G Commercial
40-50GSM
90-100GSM
240-275GSM		 ~0.203 50 Ft / 100 Ft One Side Twisted / Both Side Twisted / No Twist
10G ~0.114 One Side Twisted / Both Side Twisted / No Twist
12G ~0.079 No Twist
10G(2+1mm) Varies No Twist
8G(3+1mm)
6G(3+2mm)
6G(4+1mm)
2" x 2" Specifications
Wire Type: GI/PVC
Wire Thickness Options & Weights:
  • • 8G (~0.406 kg/sq.ft)
  • • 10G (~0.229 kg/sq.ft)
  • • 12G (~0.159 kg/sq.ft)
  • • 10G(2+1mm)
  • • 8G(3+1mm)
  • • 6G(3+2mm)
  • • 6G(4+1mm)
Quality:
• Commercial Grade
• 40-50GSM
• 90-100GSM
• 240-275GSM
Roll Size: 50 Ft / 100 Ft
Chain Link End:
• One Side Twisted
• Both Side Twisted
• No Twist
2.5" x 2.5" Specifications
Wire Type: GI/PVC
Wire Thickness Options & Weights:
  • • 8G (~0.325 kg/sq.ft)
  • • 10G (~0.183 kg/sq.ft)
  • • 12G (~0.127 kg/sq.ft)
  • • 10G(2+1mm)
  • • 8G(3+1mm)
  • • 6G(3+2mm)
  • • 6G(4+1mm)
Quality:
• Commercial Grade
• 40-50GSM
• 90-100GSM
• 240-275GSM
Roll Size: 50 Ft / 100 Ft
Chain Link End:
• One Side Twisted
• Both Side Twisted
• No Twist
3" x 3" Specifications
Wire Type: GI/PVC
Wire Thickness Options & Weights:
  • • 8G (~0.271 kg/sq.ft)
  • • 10G (~0.152 kg/sq.ft)
  • • 12G (~0.106 kg/sq.ft)
  • • 10G(2+1mm)
  • • 8G(3+1mm)
  • • 6G(3+2mm)
  • • 6G(4+1mm)
Quality:
• Commercial Grade
• 40-50GSM
• 90-100GSM
• 240-275GSM
Roll Size: 50 Ft / 100 Ft
Chain Link End:
• One Side Twisted
• Both Side Twisted
• No Twist
3.5" x 3.5" Specifications
Wire Type: GI/PVC
Wire Thickness Options & Weights:
  • • 8G (~0.232 kg/sq.ft)
  • • 10G (~0.131 kg/sq.ft)
  • • 12G (~0.091 kg/sq.ft)
  • • 10G(2+1mm)
  • • 8G(3+1mm)
  • • 6G(3+2mm)
  • • 6G(4+1mm)
Quality:
• Commercial Grade
• 40-50GSM
• 90-100GSM
• 240-275GSM
Roll Size: 50 Ft / 100 Ft
Chain Link End:
• One Side Twisted
• Both Side Twisted
• No Twist
4" x 4" Specifications
Wire Type: GI/PVC
Wire Thickness Options & Weights:
  • • 8G (~0.203 kg/sq.ft)
  • • 10G (~0.114 kg/sq.ft)
  • • 12G (~0.079 kg/sq.ft)
  • • 10G(2+1mm)
  • • 8G(3+1mm)
  • • 6G(3+2mm)
  • • 6G(4+1mm)
Quality:
• Commercial Grade
• 40-50GSM
• 90-100GSM
• 240-275GSM
Roll Size: 50 Ft / 100 Ft
Chain Link End:
• One Side Twisted
• Both Side Twisted
• No Twist

Frequently Asked Questions

Usually the thicker the wire size, the stronger and more durable it will be. For exterior applications 12-Gauge or 10-Gauge wire would be a good choice.

The life of a mesh depends on GSM of wire. Different options available:
  • Commercial: 50-70 GSM
  • Medium Grade: 100-120 GSM
  • Premium Grade: 270-275 GSM

PVC Coated Chain Link Fencing Mesh fences provide extra resistance for corrosion and give an aesthetic look with different colors. Normally GI wire is coated with PVC to add an additional layer against the weather.

GSM Life
Commercial (20-30 GSM)1-2 years
50-70 GSM4-5 years
90-120 GSM7-9 years
270-275 GSM18-20 years
Commercial (20-30 GSM)

Life: 1-2 years

50-70 GSM

Life: 4-5 years

90-120 GSM

Life: 7-9 years

270-275 GSM

Life: 18-20 years

Generally one roll has 50 feet height. However, 25 feet rolls are also available in the market in case height is more or the roll is heavy.

Chain Link Fencing Mesh does not offer any privacy by itself, however there are ways to achieve privacy. Common solutions include growing creeper plants on it or using slats.

Normally there are a wide range of sizes available in chain link along with height variation, so it is practically not possible to keep stock ready. Although we take the order and manufacture it for you and it usually takes maximum 1 week's time depending on your quantity.

Chain Link fence posts can be kept at 10' apart.

We can normally manufacture any height from 2-15 feet. Heights above 15 feet can be manufactured on an order basis.
Help Section Background

Need Help Choosing?

Not sure which specifications best suit your needs?

Our experts are here to guide you through the selection process.

Request a Quote

Get customized pricing for your specific Chain Link Fencing Mesh requirements.
